This off-grid kit is a great all-in-one off-grid power solution for camping, BBQ, or any outdoor activity that requires portable, reliable, noiseless and clean power supply!

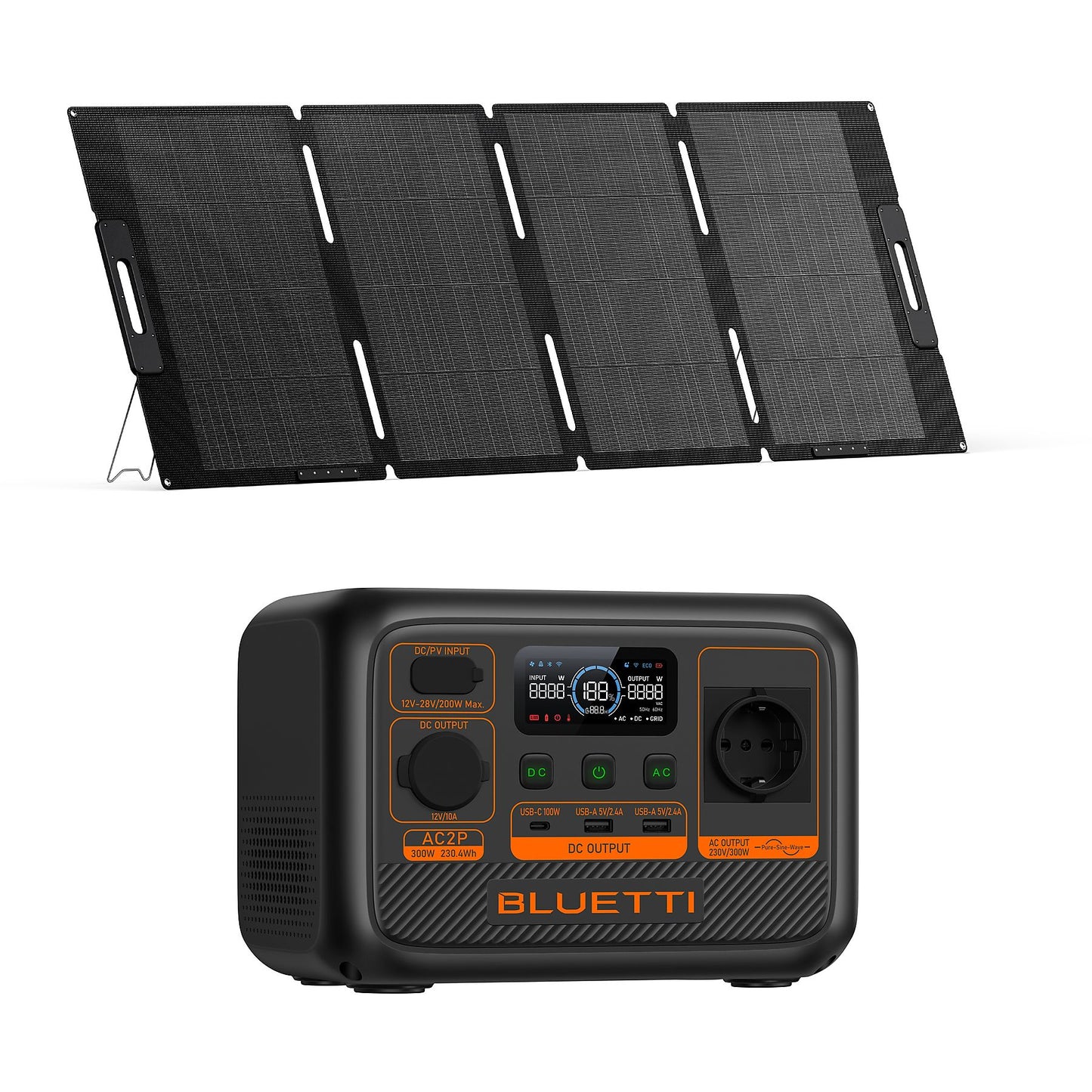

The kit includes Bluetti AC2P portable solar generator and Bluetti MP200 foldable solar panel rated at 200W.

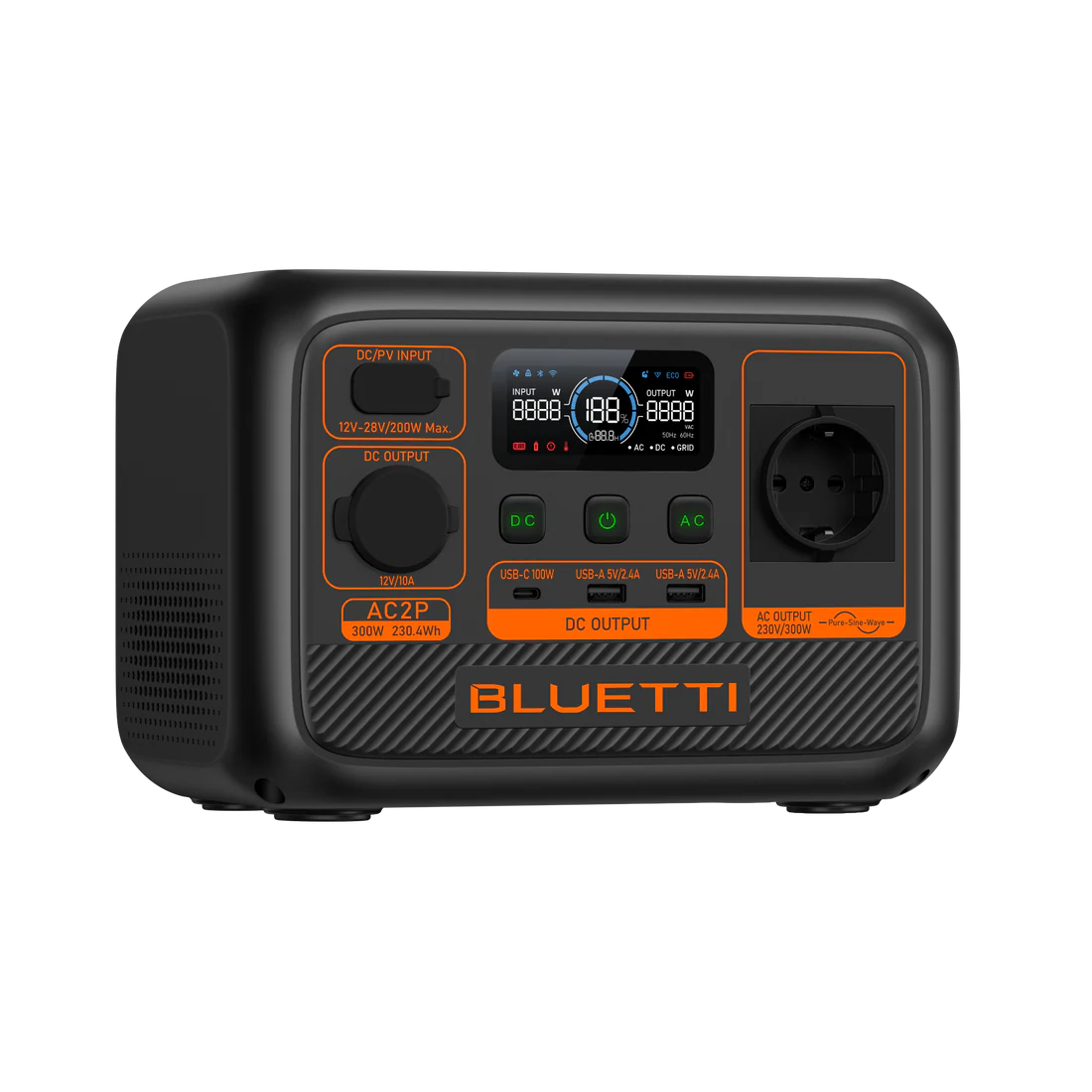

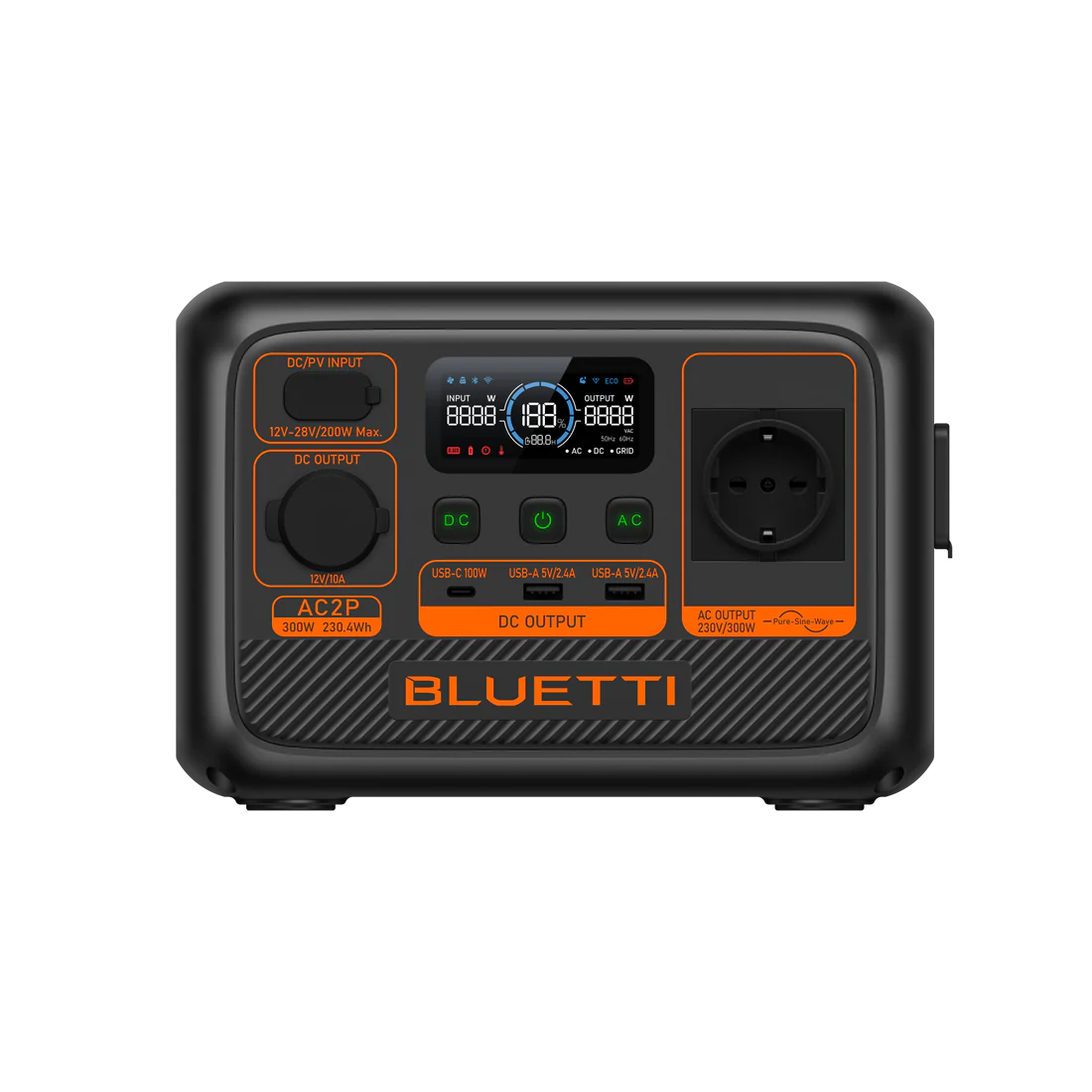

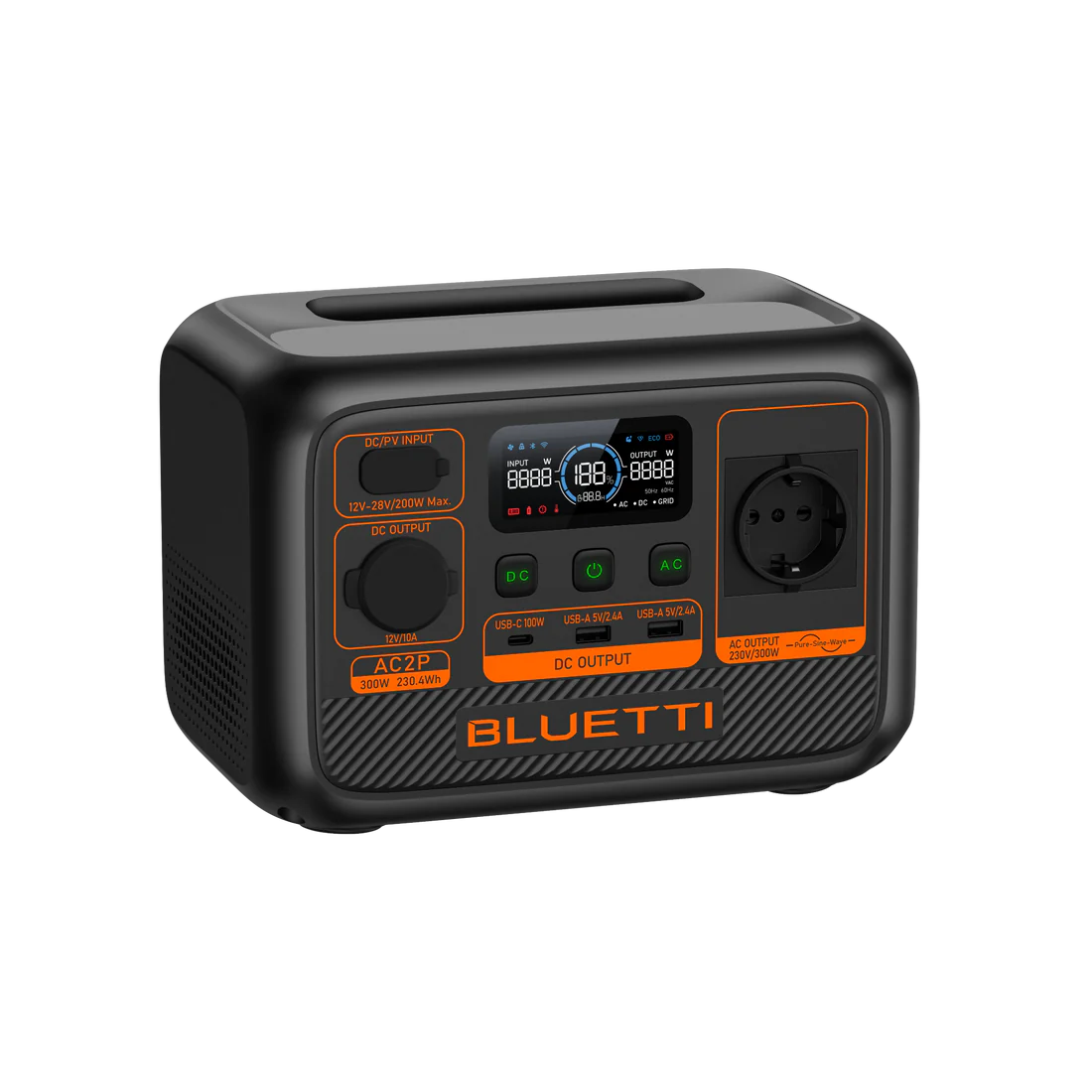

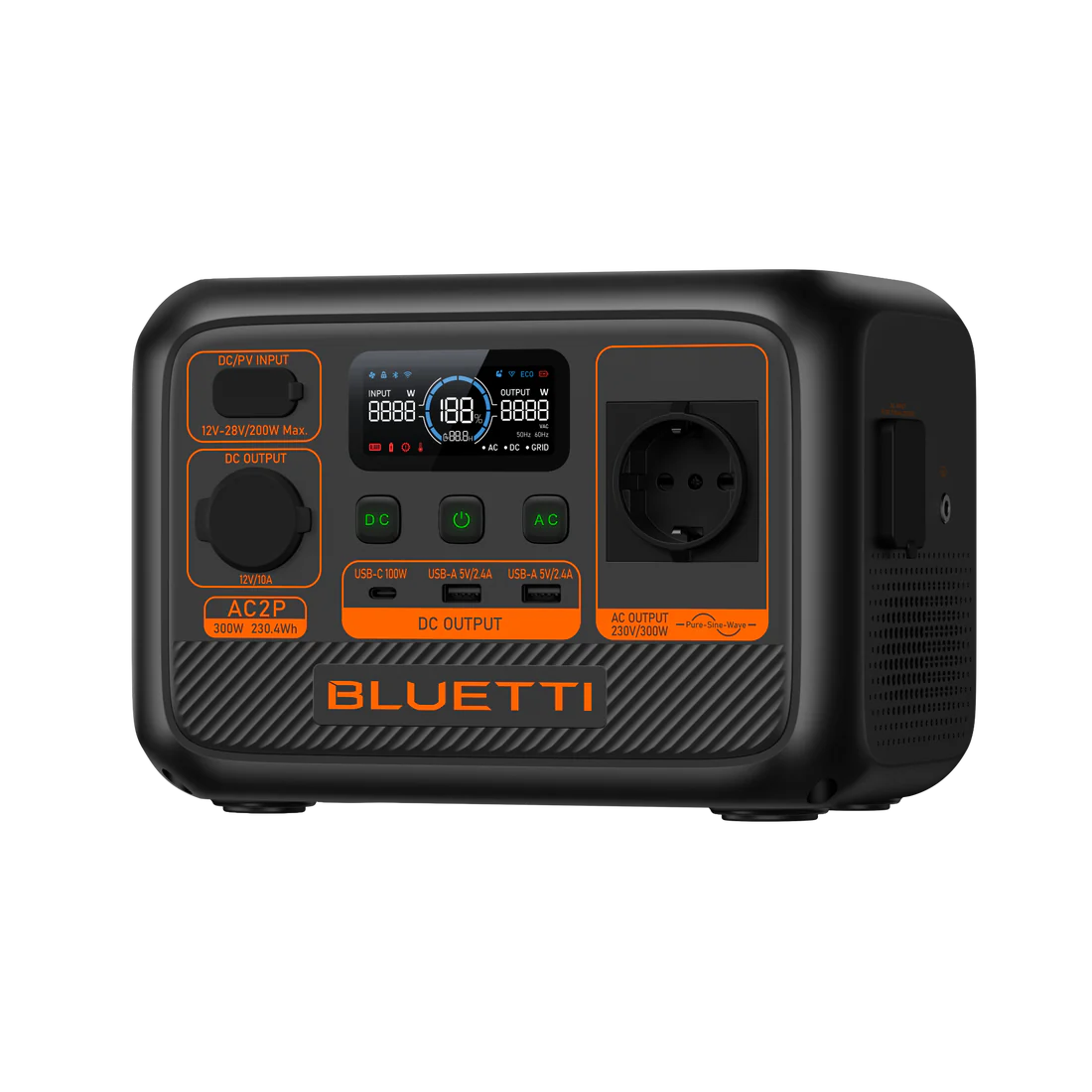

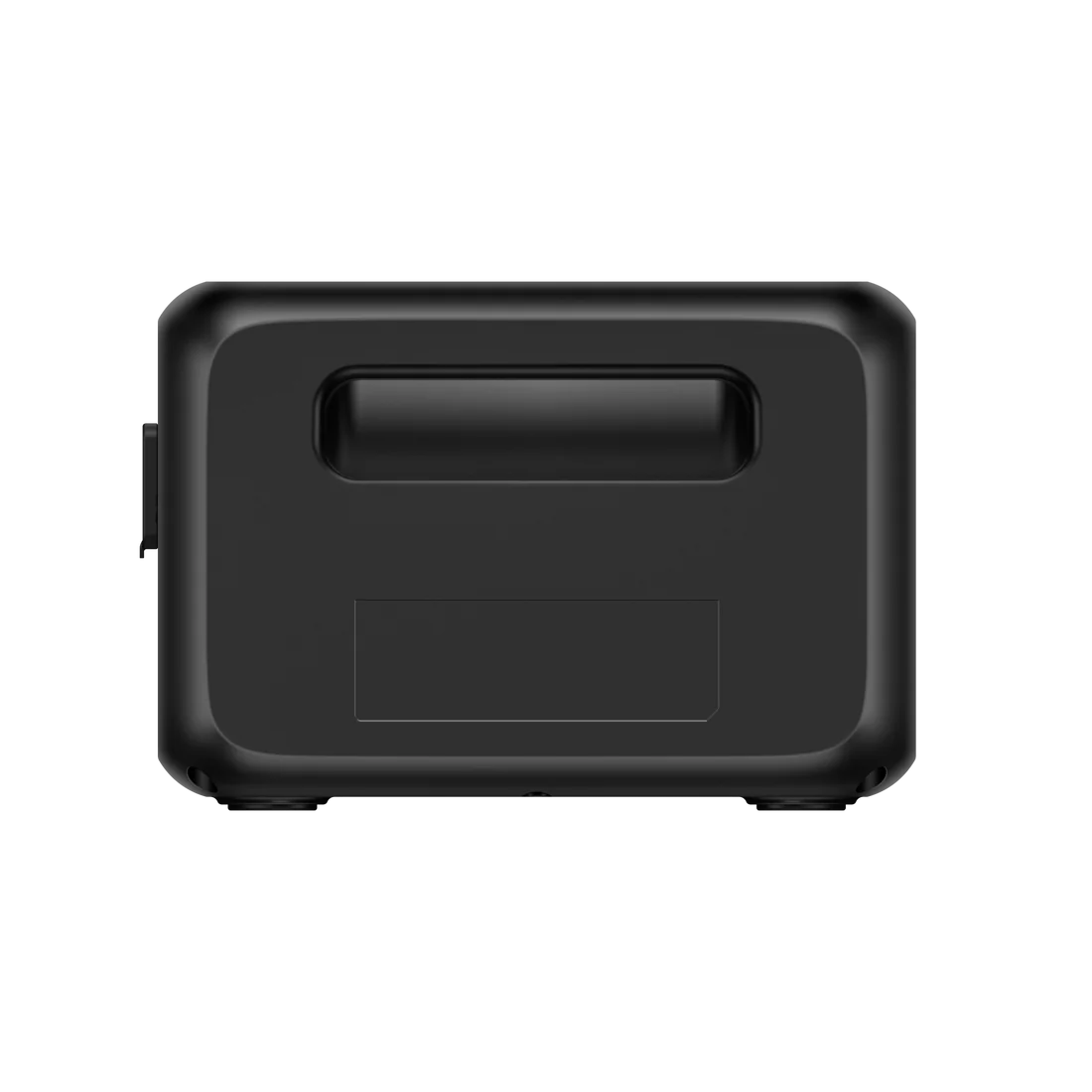

BLUETTI AC2P SOLAR GENERATOR
Bluetti AC2P is one of the smallest portable power stations in our range, yet it is one that punches well above its weight when it comes to providing power wherever you need.
Portable & lightweight, this powerbank can be easily carried in backpack, yet it is packed with mighty features serving a variety of uses.
- Small but mighty with a 600W power lifting capacity；
- Rapid 270W turbo charging that fully charges in just 70 minutes；
- Safe and durable for long-lasting use;
- Enjoy intelligent app remote control functionality;
Thanks to advanced LiFeP04 battery chemistry, AC2P stores 230.4Wh (9Ah) of energy, available on demand to power any appliance up to 300W with peak surge power up to 600W.
In-built battery has extremely long life: even after more than 3,000 charging cycles, the battery will retain at least 80% of its original capacity.
With smart MPPT charge controller and battery management system (BMS) you will never need to worry about overcharging your battery. Charging is versatile and extremely fast: the station can be charged from AC socket in just over an hour!
AC2P model can also be connected and managed via Bluetti's smart mobile app.
BATTERY INFO
Type: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: 3,000+ Cycles to 80% Original Capacity
Shelf-life: Recharge to 40%-60% Every 3-6 Months
Management System: MPPT Controller, BMS
OUTPUT
AC Outlets: 1×230V/1,3A / 300W
Inverter Type: Pure Sine Wave
USB-A: 2 ×5VDC/2,4A 12W (Each Port)
12V DC Outlets: 1 ×12V/10A (Car outlet, regulated.)
INPUT
AC Power Input (Turbo Mode): 270W Max.
Solar Input: 200W Max, 12V-28VDC, 8,2A
Car Input: 12/24V from Cigarette Lighter Port
RECHARGE TIMES
AC Charging Cable (270W Turbo Charging): ≈1,2 Hours
Solar Panel (s)(200W): ≈1,5 Hours (under ideal conditions)
GENERAL
Pass-through Charging: Yes
Weight: About 3,6kg / 7,9lbs
Dimensions (L x W x D): 250 × 156,5 × 174,5mm / 9,8 × 6,16 × 6,87in
Charging Temperature: 0°C-40°C / 32°F-104°F
Discharging Temperature: -20°C-40°C / -4°F-104°F
Storage Temperature: -20°C-40°C / -4°F-104°F
Certifications: UL Standard, CEC, DOE, FCC, CA Prop 65
Bluetti MP200 / 200W portable solar panel compatible with most Bluetti solar generators:
- Monocrystalline Solar Cells With Up to 23,4% Efficiency
- Long-lasting ETFE Coating
- Foldable & Portable
- Compatible with Bluetti EB3A, EB50, EB55, EB70, EB150, EB240, AC200/MAX, AC300 / B300, AC500 / B300S, EP500
- 12-month Warranty
Solar panel specifications
Designed with easy portability in mind, this sleek and foldable solar panel lets you tap into the sun's energy wherever you roam. Whether you're hiking through the wilderness, camping under the stars, or exploring off-the-grid destinations, the MP200 ensures a constant stream of power always on call.
Featuring advanced monocrystalline cell design, this foldable solar panel packs a formidable 200W of power and features industry-leading 24% cell efficiency.
Thanks to IP67 waterproof and dust-proof design, superior encapsulation materials and rugged adjustable angle mounting stand, MP200 solar panel is an ideal power source for charging your Bluetti solar generator. This solar panel is compatible with all Bluetti solar power stations.
Technical specifications:
POWER
Lamination: ETFE (Ethylene tetrafluoroethylene)
Cell Type: Monocrystalline Silicon
Cell Efficiency: Up to 24%
Open Circuit Voltage(OCV): 22.9V
Short Circuit Current(Isc): 11A
GENERAL
Connector Weight: 19,1lbs (8.7Kg)
Dimensions (Unfolded): 81,6*26,8*1,3in (2075*681*35mm)
Dimension (folded): 26,8*21,7*2,5in (681*553*65mm)
Operating Temperature: 14-149℉ (-10-65℃)
Best Working Temperature: 77℉ (25℃)
Cable Length: 59in/ (1,5m)
