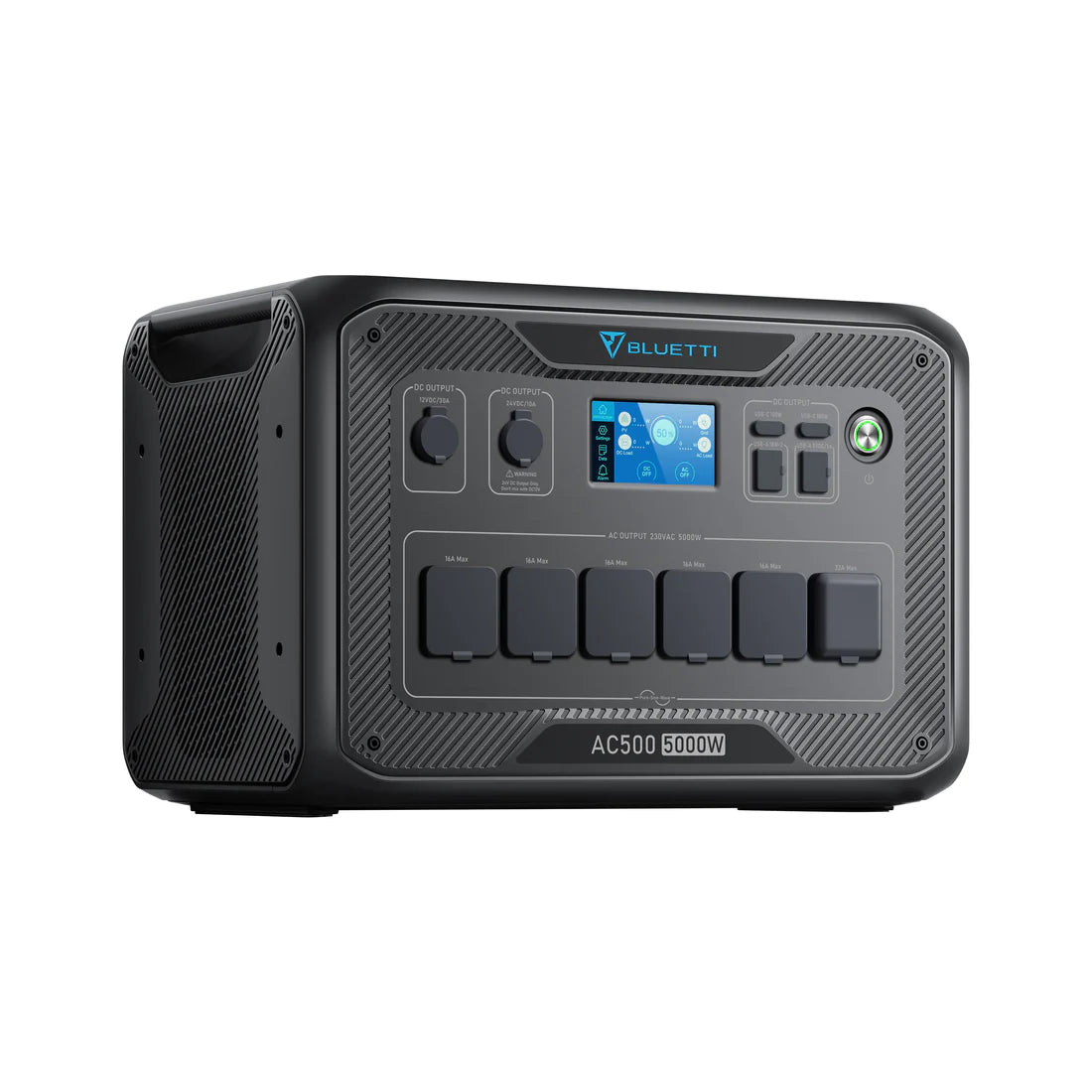

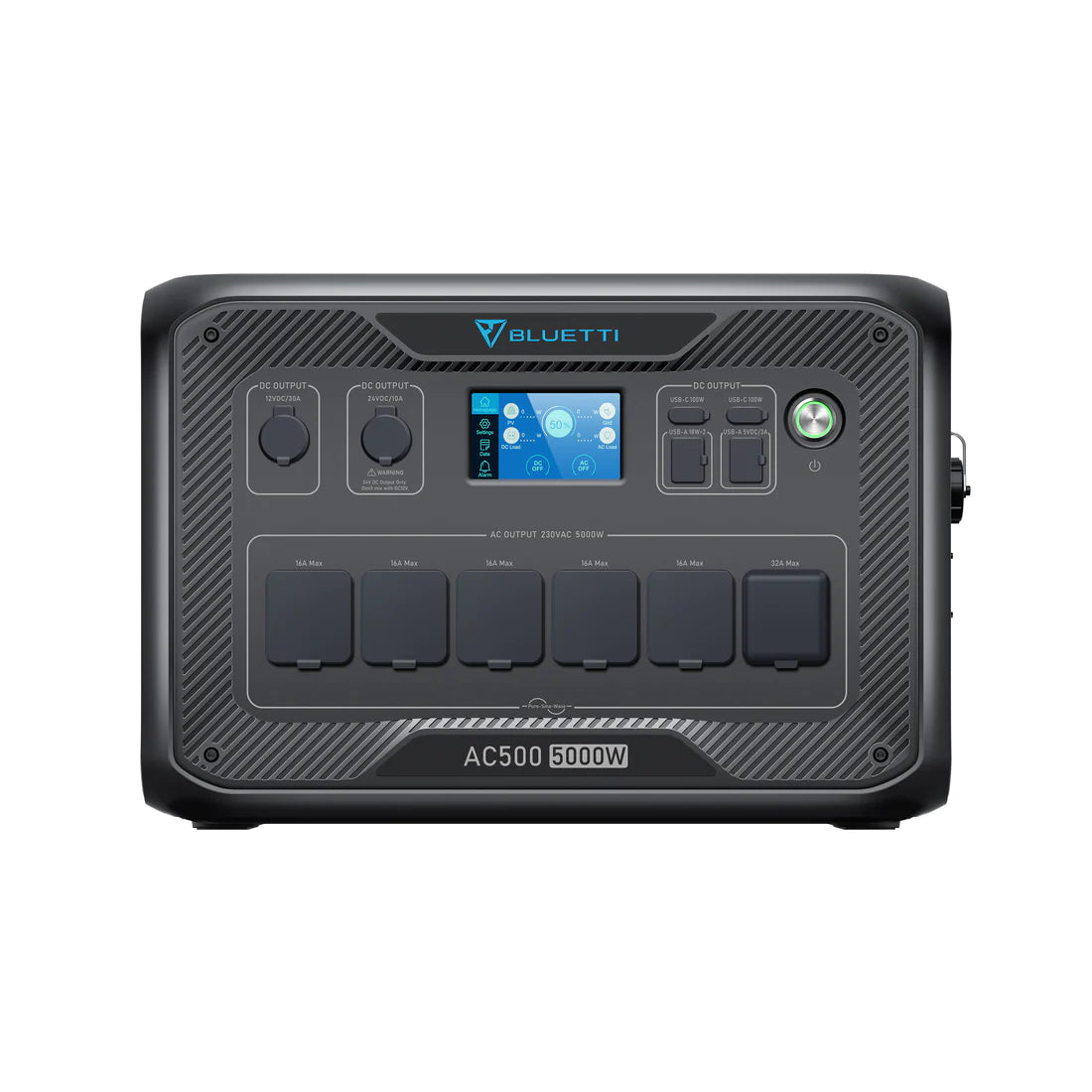

Bluetti AC500 is one of the most powerful and versatile all-in-one off-grid / grid-tie / UPS power solutions available on the market today. With an incredible output of up to 3kW with one B300K battery, and 5kW with two or more batteries, which can surge up to a whopping 10kW, this power station can power virtually any household device.
This super-powerful station is ideal for homes, larger yachts, farmhouses & stables, street food vendors & kiosks, offices, shops, clinics and more!

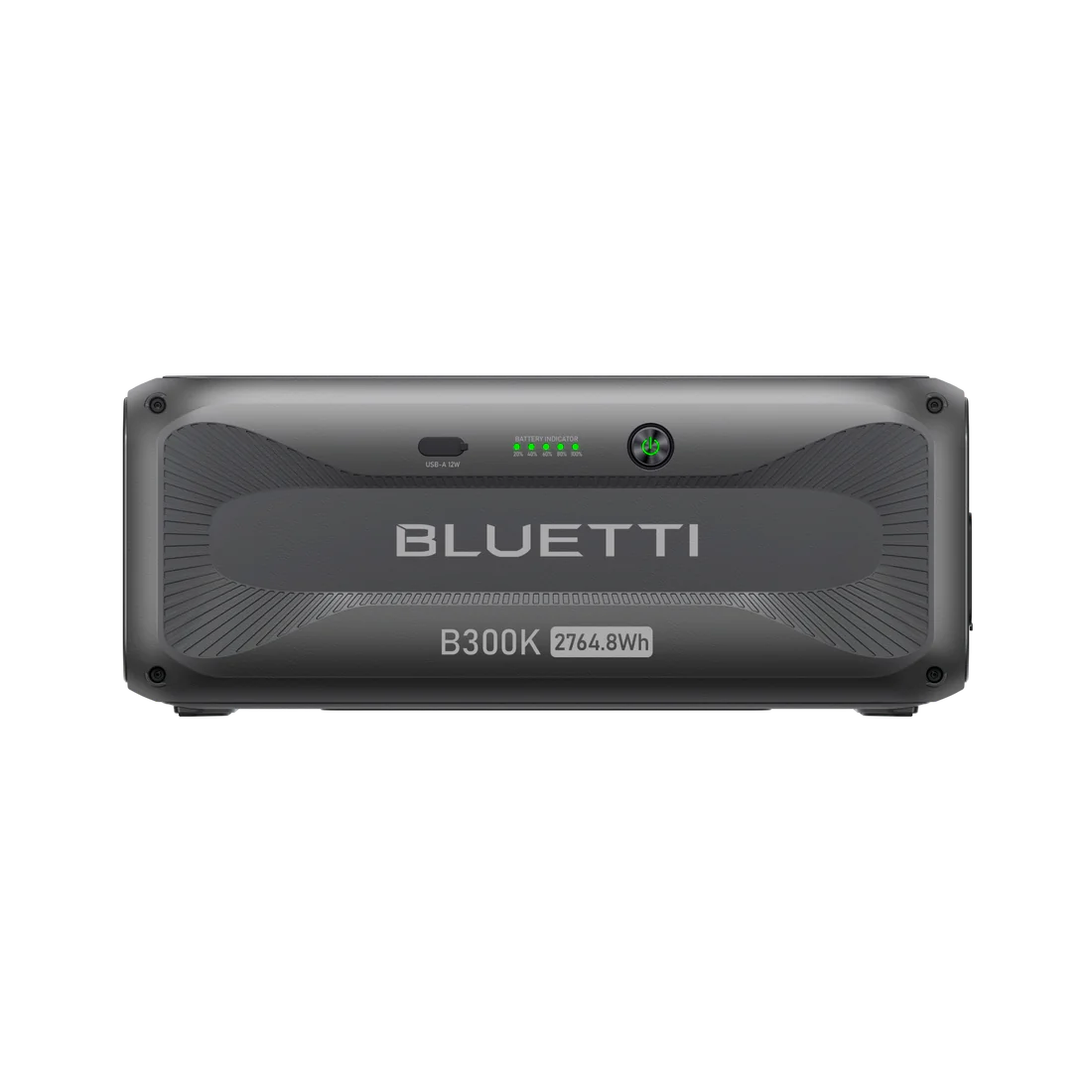

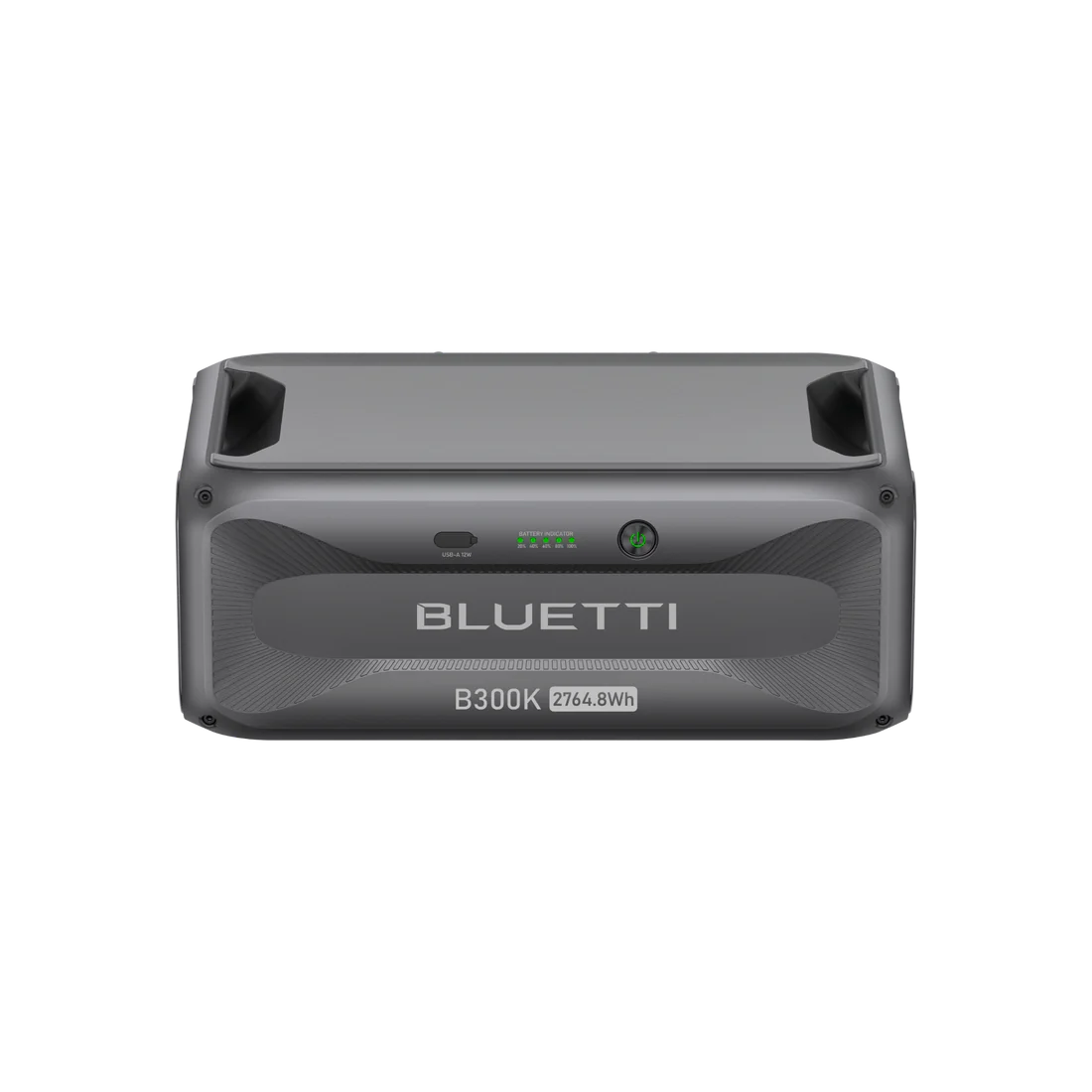

Thanks to external B300K LiFeP04 batteries packing a formidable 2,764.8Wh of energy each, AC500 power station can reach an incredible 16,588.8Wh battery capacity!
At a glance:
5kW rated power (10kW peak surge) with two or more B300K batteries
3kW rated power (6kW peak surge) with one B300K battery
2,764.8Wh - 16.588.8Wh expandable capacity
LiFePO₄ battery with 4,000+ charging cycles to 80% of original capacity
Smart App Control (WiFi & Bluetooth Connection)
6 Ways to Recharge (AC/Solar/Car/Generator/Lead-acid battery/Dual AC/ AC+ Solar)
16 Versatile Outlets for 99% Devices
Tie to Home Grid for 24/7 UPS

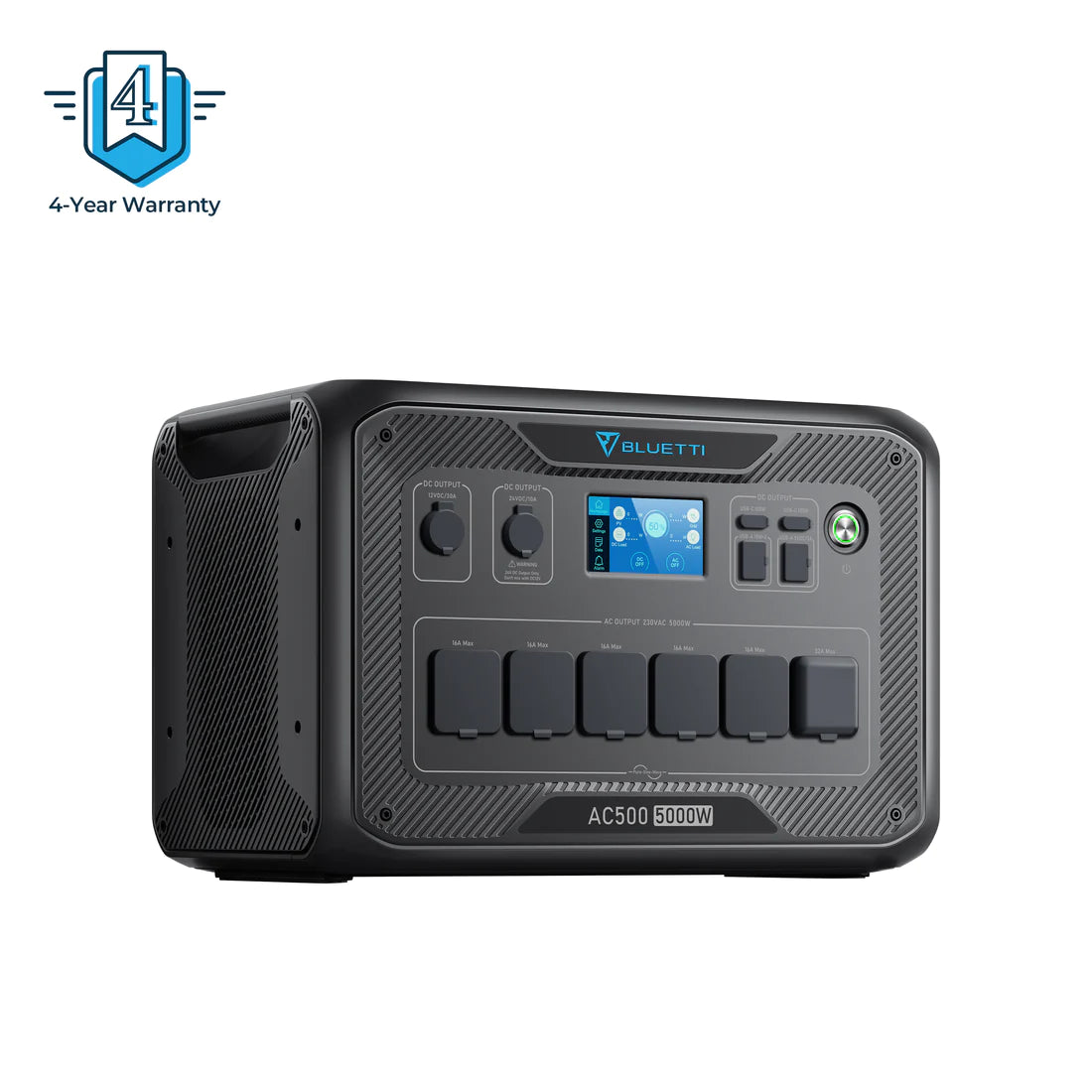

4 Years Worry-Free Warranty
Specifications
OUTPUT
AC Outlets: 5 x 230V/16A / 1 x 230V/32A / 5,000W in total
Inverter Type: Pure Sine Wave / Surge Power: up to 10kW (with two or more B300K)
USB-C Port: 2 x 100W Max.
USB-A Port: 2 x 5V/3A USB-A DC Outlets:
1 x 12V/30A (RV Outlet) 1 x 24V (Car Outlet) Wireless Charging Pad: 2 x 15W max for each
INPUT
AC charging input: 4,500W max (with 1*B300K), 5,000W max. (with 2 or more B300K)
Solar Input: 3,000W max, VOC 12-150VDC / 15A
Car Input: 12 / 24V from vehicle cigarette lighter port
Maximum Input: 4,500W (with 1*B300K), 8,000W (with 2 or more B300K) with AC and solar input simultaneously
GENERAL
Smart app control via WiFi or Bluetooth
Scalability: expandable storage capacity up to 6 x B300K
Capable of simultaneous recharge & discharge
Weight (AC500 only without B300K): 66,2lbs (30kg))
Dimensions (LxWxD): 20,5 x 12,8 x 14,1in ( 52 x 32,5 x 35,8cm)
Operating Temperature: -4-104℉ (-20-40℃)
Storage Temperature: -4-104℉ (-20-40℃)
Certification: UL2743, UKCA, TELEC, RCM, FCC ID, CE
Warranty: 4 years
Battery Info
2,764.8Wh - 16.588.8Wh expandable capacity
Safe & reliable LFP battery with 4,000+ charging cycles
