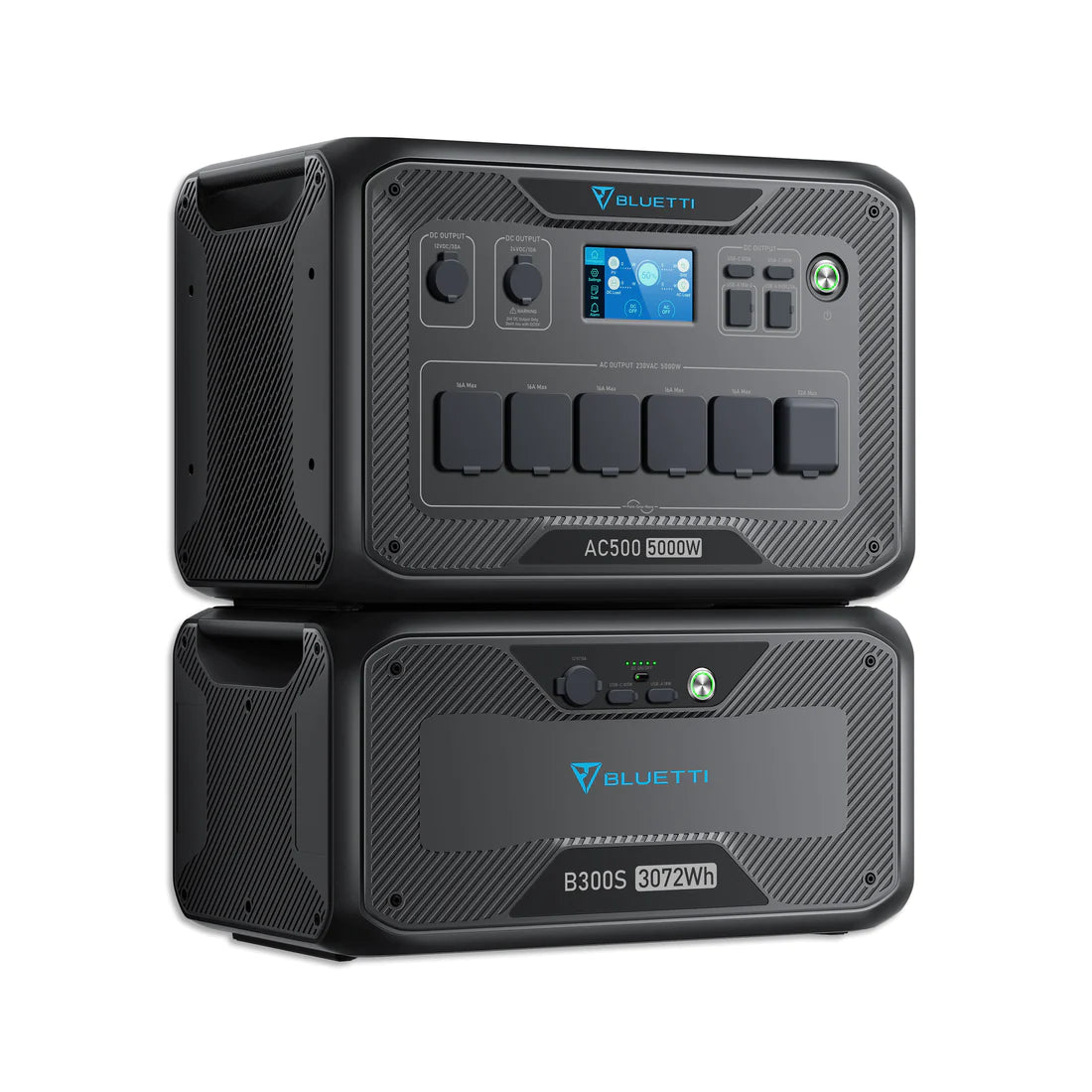

Bluetti AC500 is one of the most powerful and versatile all-in-one off-grid / grid-tie / UPS power solutions available on the market today. With an incredible 5kW power output, which can surge up to a whopping 10kW, this power station can power virtually any household device.
This super-powerful station is ideal for homes, larger yachts, farmhouses & stables, street food vendors & kiosks, offices, shops, clinics and more!
Thanks to external B300S LiFeP04 batteries packing a formidable 3,072Wh of energy each, AC500 power station can reach an incredible 18,432Wh battery capacity!
At a glance:
5.000W Rated Power (10.000W Surge)
3.072Wh~18.432Wh Expandable Capacity
LiFePO₄ Battery With 3.500+ Life Cycles to 80%
Smart App Control (WiFi & Bluetooth Connection)
6 Ways to Recharge (AC/Solar/Car/Generator/Lead-acid battery/Dual AC/ AC+ Solar)
16 Versatile Outlets for 99% Devices
Tie to Home Grid for 24/7 UPS
4 Years Worry-Free Warranty
Specifications
OUTPUT
AC Outlets: 5 x 230V/16A / 1 x 230V/32A / 5,000W in total
Inverter Type: Pure Sine Wave / Surge Power: up to 10kW
USB-C Port: 2 x 100W Max.
USB-A Port: 2 x 5V/3A USB-A DC Outlets:
1 x 12V/30A (RV Outlet) 1 x 24V (Car Outlet) Wireless Charging Pad: 2 x 15W max for each
INPUT
AC Charging Cable Input: 4,500W max. (with 1*B300S), 5.000W Max. (with 2 or more B300S)
Solar Input: 3,000W max, VOC 12-150VDC / 15A
Car Input: 12 / 24V from vehicle cigarette lighter port
Maximum Input: 4,500W (with 1*B300S), 8,000W (with 2 or more B300S) with AC and solar input simultaneously
GENERAL
Smart app control via WiFi or Bluetooth
Scalability: expandable storage capacity up to 6 x B300S
Capable of simultaneous recharge & discharge
Weight (AC500 only without B300S): 66,2lbs (30kg))
Dimensions (LxWxD): 20,5 x 12,8 x 14,1in ( 52 x 32,5 x 35,8cm)
Operating Temperature: -4-104℉ (-20-40℃)
Storage Temperature: -4-104℉ (-20-40℃)
Certification: UL2743, UKCA, TELEC, RCM, FCC ID, CE
Warranty: 48 months

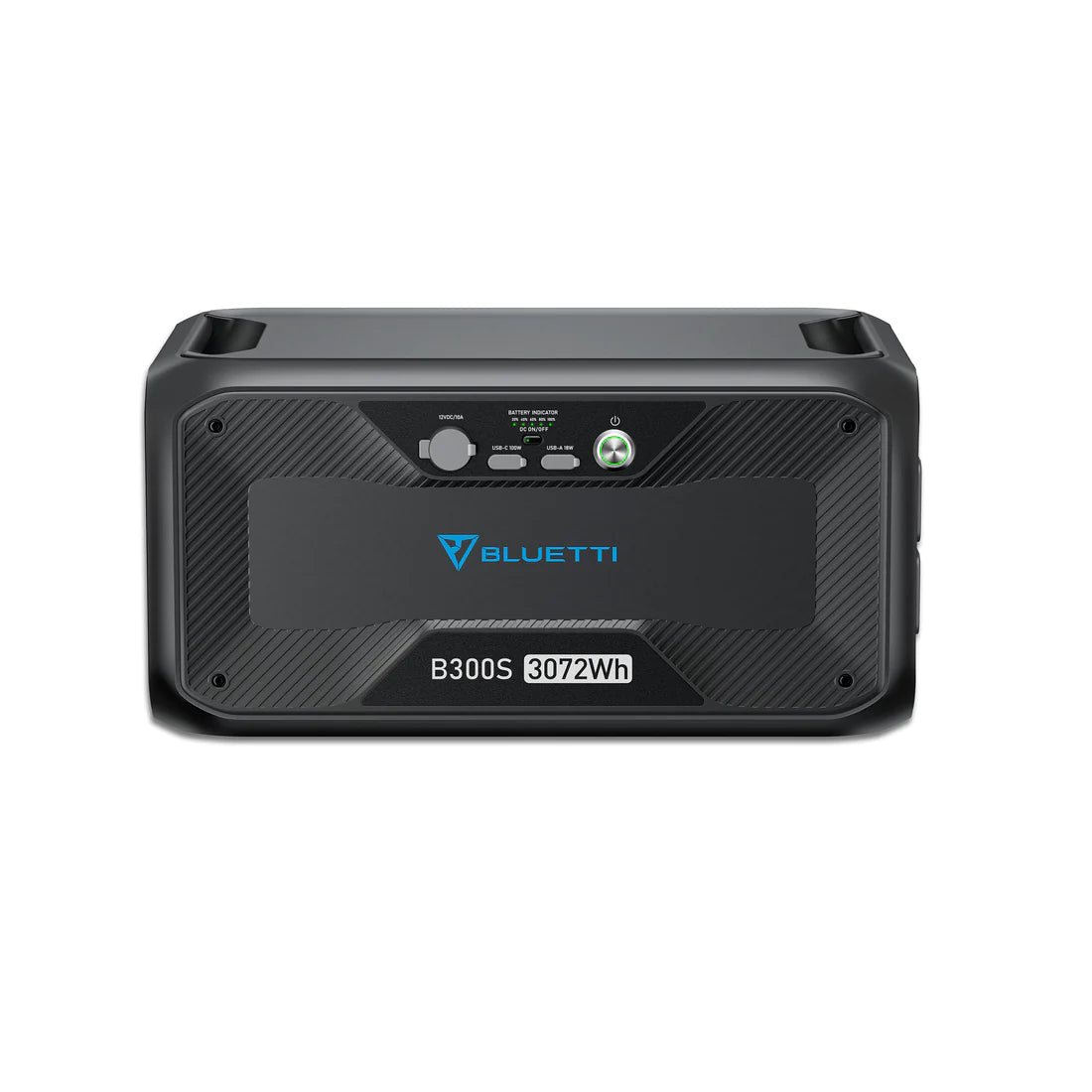

Battery Info
Capacity: works with B300S (3,072Wh) expandable batteries, up to 6 batteries can be added
Safe & reliable LFP battery with 3.500+ life cycles.
Standalone power station with 100W USB-C, 12V/10A car port and USB-A port.
Responsive even on freezing days with Self-heating Function.
Compatible with AC500 for a maximum of 18.432Wh capacity. (AC500+6*B300S)
Weight: 79,6lbs (36.1kg) / Dimensions (LxWxD): 20,5 x 12,5 x 10,5in (52 x 32 x 26,6cm)
